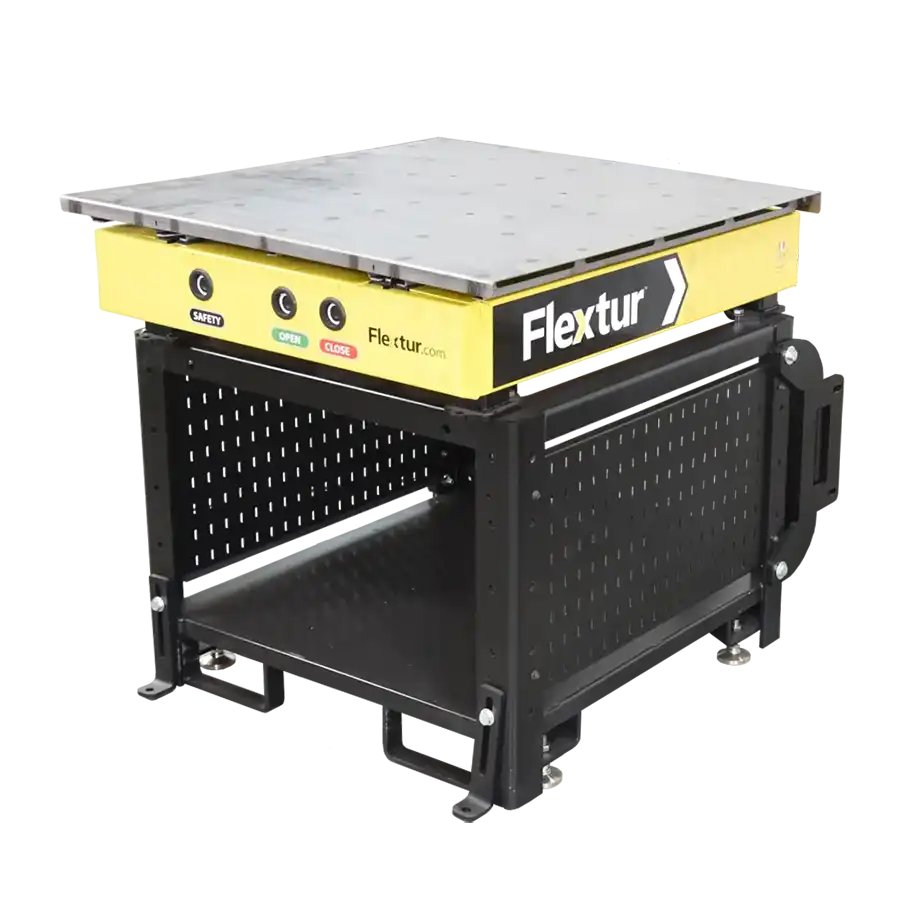

36" x 36" Quick-Change Table for Flextur Cobot Welding System
36″ x 36″ Quick-Change Table

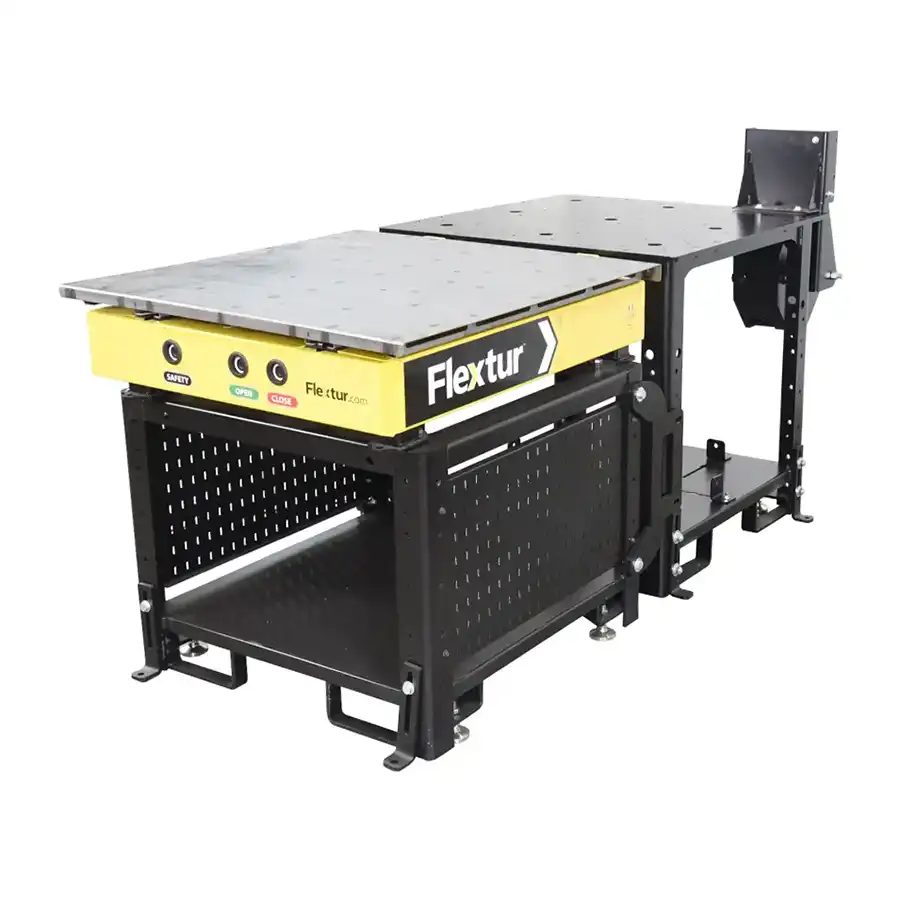

Flextur 36" x 36" Quick-Change Fixture Table for use with Flextur Cobot Docking Station and 36" x 36" Flextur Quick-Change Fixture Plate for faster change over and accurate fixture placement.
Key specifications
USA Made Dalton, Ohio
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Full Specifications
| Part number | 71500061 |
|---|---|
| Length | 36 in |
| Width | 36 in |
| Height | 35 in |
| Material | Steel |
| Finish | Painted |
| Quantity | 1 |
Product Overview

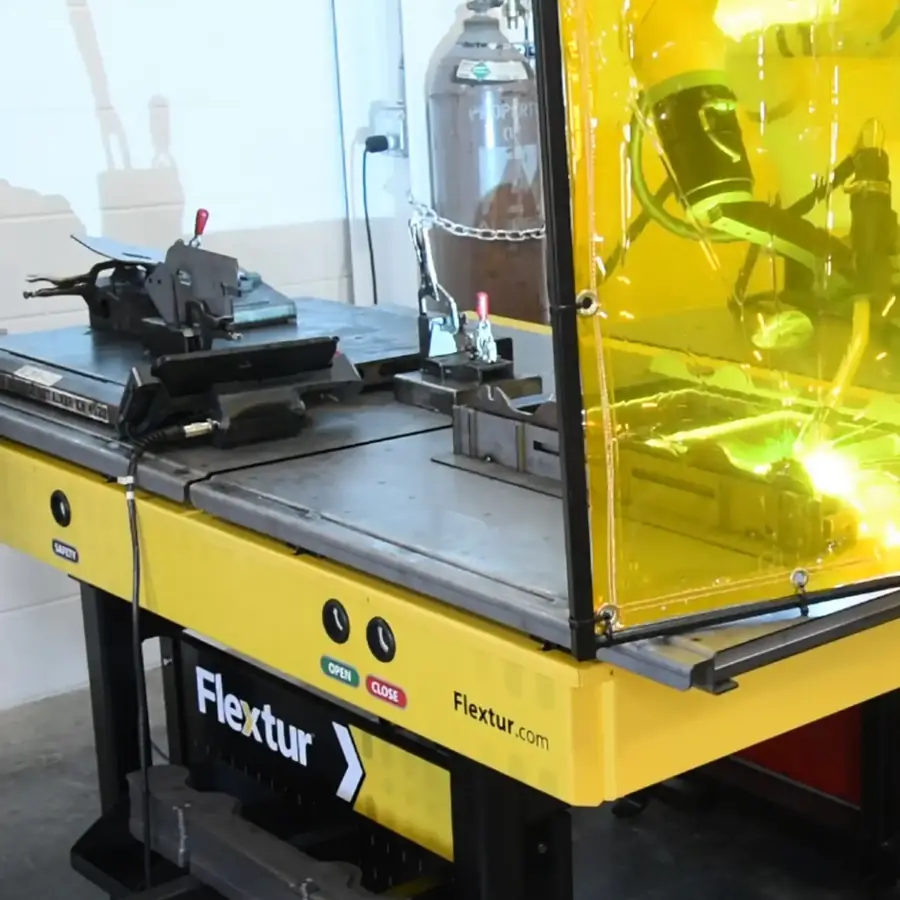

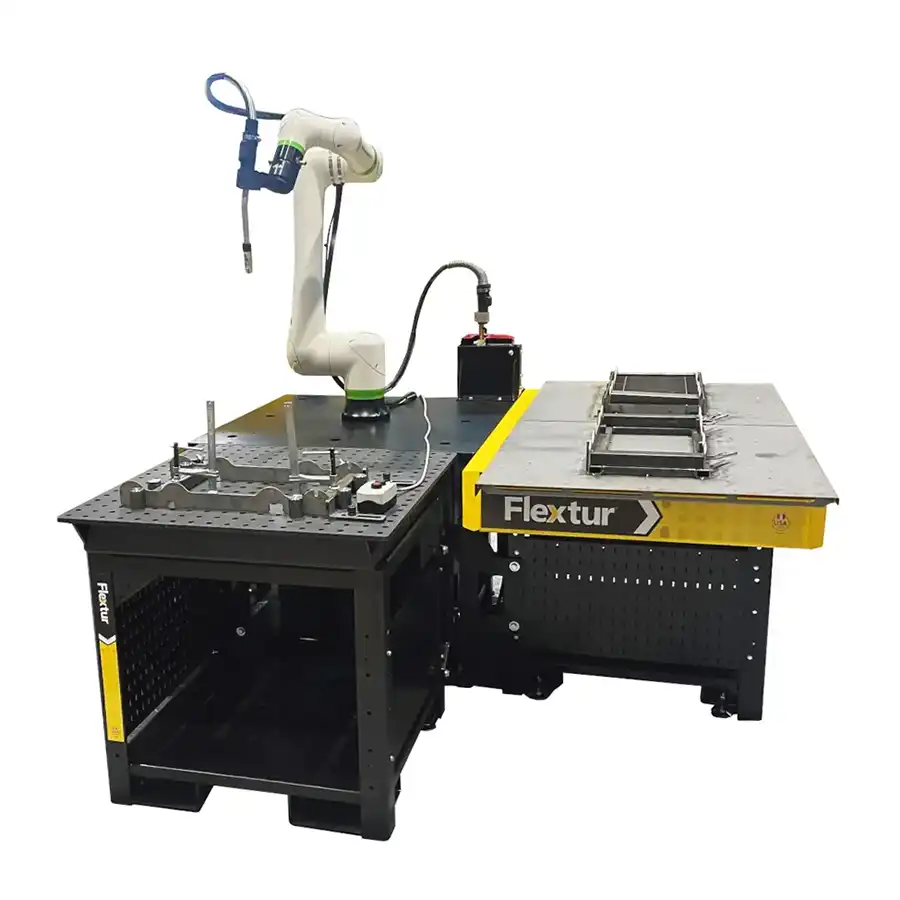

Flextur 36″ x 36″ Quick-Change Fixture Table is designed for use with the Flextur Cobot Docking Station and 36″ x 36″ Flextur Quick-Change Fixture Plate, allowing for faster changeovers and precise fixture placement. As part of Flextur’s Cobot Welding System, this Quick-Change Table enhances the system’s accuracy, efficiency, safety, and overall productivity for cobot welding solutions.
- Accurate within +/-.01″
- Leveling Feet

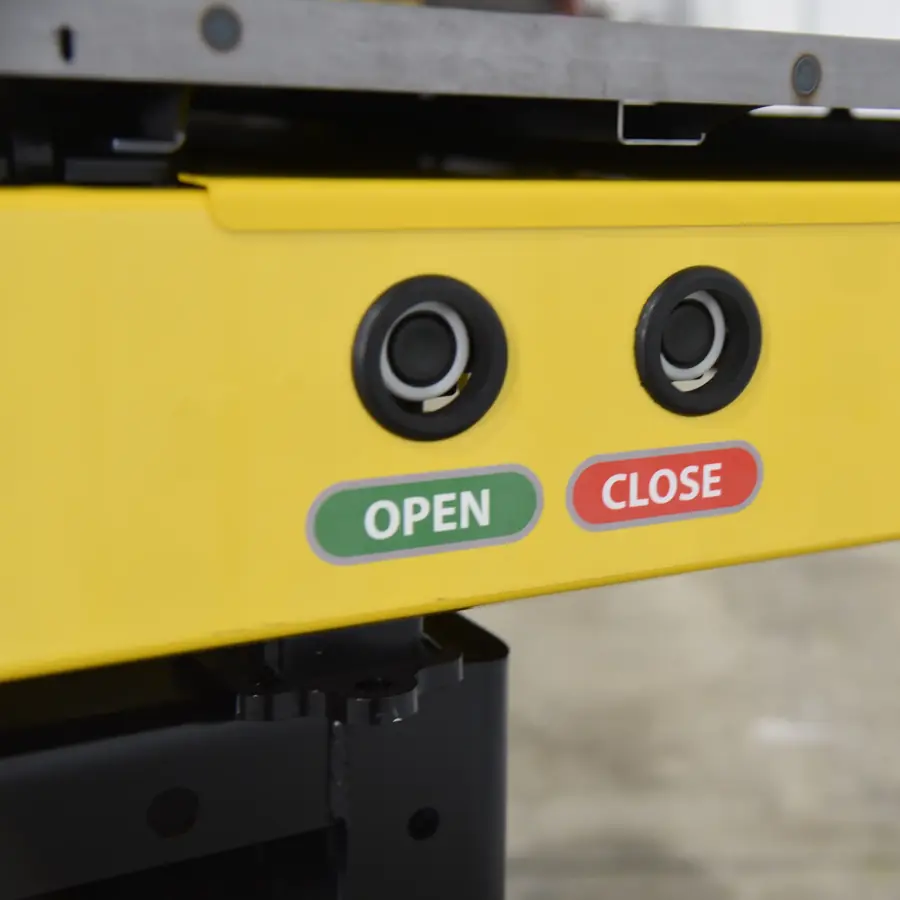

- 2-Hand safety switch
- Pneumatic operation
- Pneumatic quick connect included
- Grounding lugs & cable included
- Gridlok Innovation
- Patented Design
Full Specifications
| Part number | 71500061 |
|---|---|
| Length | 36 in |
| Width | 36 in |
| Height | 35 in |
| Material | Steel |
| Finish | Painted |
| Quantity | 1 |
Compare Flextur Welding Tables
Compare Flextur welding table families across application, construction, capacity, configuration, and mobility to find the most appropriate product group.
| Compare by | Stationary Tables | Mobile Tables | Cobot Tables | Quick-Change Tables |
|---|---|---|---|---|
| Primary Use | General Manual or Cobot Welding | Mobile Welding or Changing Work Zones | Dedicated Cobot Automation | High-Mix, Low-Volume Cobot Welding |
| Size Options | 36″ × 30″Item 7890925036″ × 72″Item 7890926548″ × 48″ — 5-SidedItem 7890951048″ × 96″ — 5-SidedItem 78909530 | 48″ × 48″Item 7890951548″ × 96″Item 78909525 | 36″ × 36″Item 7150006972″ × 36″Item 71500068 | 36″ × 36″Item 7150006172″ × 36″Item 71500063 |
| Table Material | Nitride or Plain Steel | Nitride or Plain Steel | Nitride Steel | Steel |
| Mobility | No | Yes | No | No |
| Load Capacity | 1,000–6,000 lbs | 4,000 lbs | 2,000 lbs | 2,000 lbs |
| Adjustability / Leveling | Adjustable Height | Fixed Legs with Casters | Fixed Legs | Leveling Feet |
| Cobot Compatibility | Cobot Pedestal compatible | Cobot Pedestal compatible | Cobot Docking Station compatible | Cobot Docking Station compatible |
| Workflow / Automation | Basic Manual Workflow to Automation Ready | Flexible Workflow with Mobility | Cobot Optimized | High-Mix, Quick-Change Automation |
| Best For | Manual Weld Shops to Scalable Cobot Systems | Shops Needing Table Mobility | Cobot Prototyping & Production | Fast Setup Changes, Short-Run Cobot Welding |
| Explore Families | View Tables → | View Tables → | View Tables → | View Tables → |
