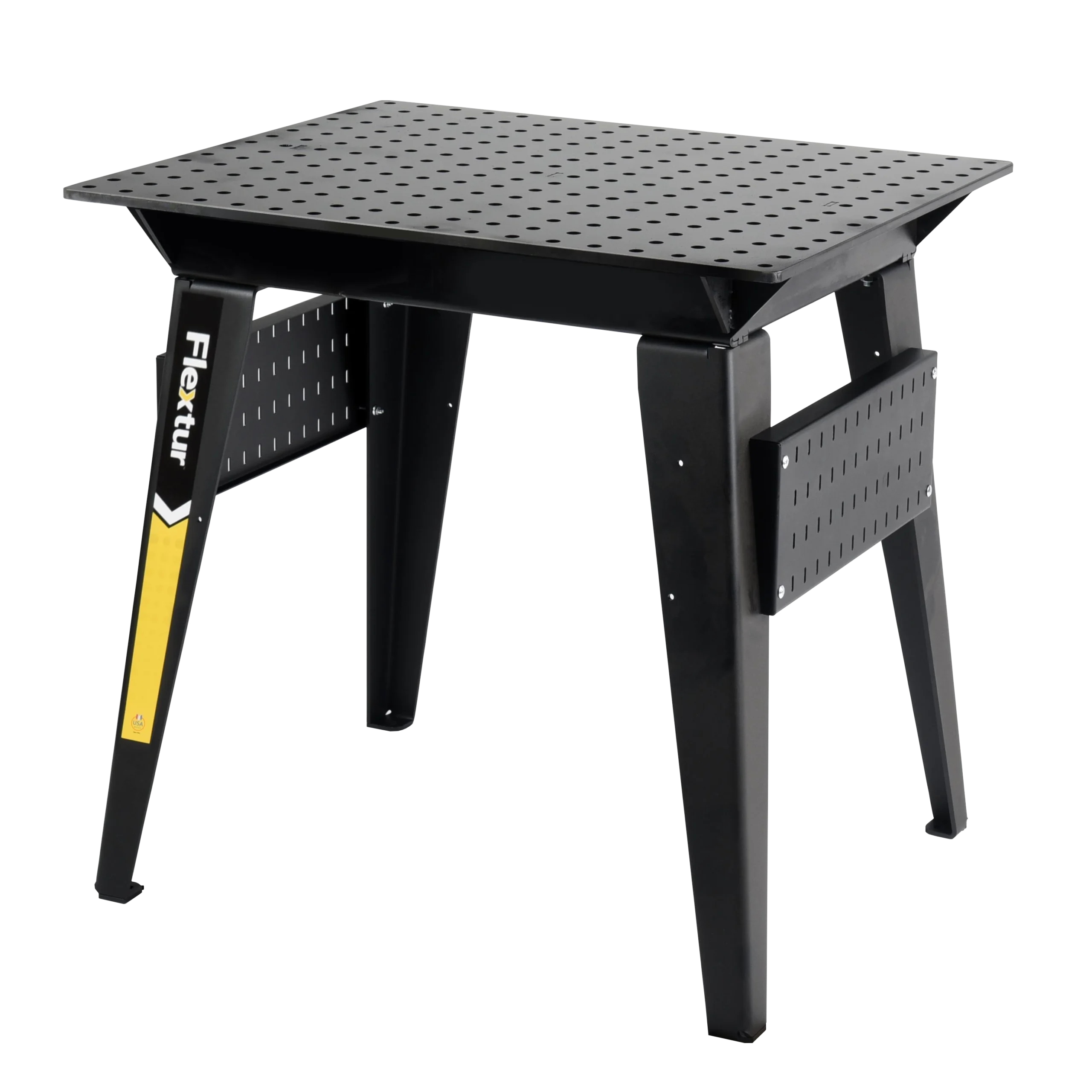

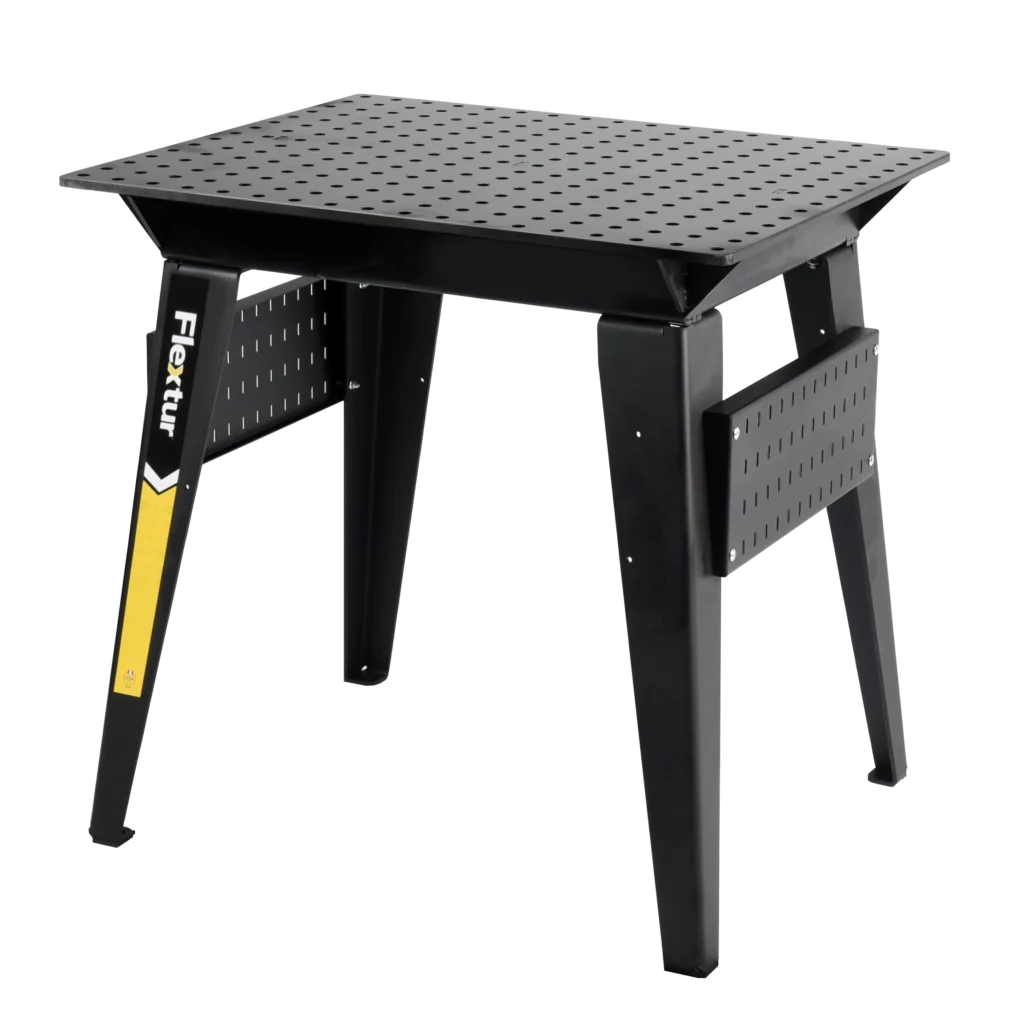

Stationary Nitride Welding Table with Tool Board Panels
36″ x 30″ Nitride Welding Table
Flextur™ Nitride Welding Table 36"L x 30"W x 35"H, 1,000lb capacity. Ideal for smaller jobs. Use with Flextur Metal Pegboard Accessories.
Key specifications
USA Made Dalton, Ohio
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Full Specifications
| Part number | 71500191 |
|---|---|
| Length | 36 in |
| Width | 30 in |
| Height | 35 in |
| Weight | 305 lbs |
| Load capacity | 2,000 lbs |
| Material | Steel |
| Finish | Nitride + Black Oxide Treated |
| Quantity | 1 |
Product Overview
Flextur™ Nitride Welding Table 36″L x 30″W x 35″H, 1/2″ black top with 1/4″ x 2″ struts and a heavy powder-coated matte black base giving it a 2,000lb weight capacity. Surface flatness is +/- .015″ over 4 square feet. The dual-layer protection of nitride & black oxide is a powerful combination. Both harden and prevent corrosion, extending the life of your table – while maintaining flatness and structural integrity. Ideal for smaller jobs or in addition to other Flextur Welding Tables. Use with Flextur Welding Fixturing Kits and Accessories. Comes with Flextur’s industrial 14-gauge steel / metal pegboard / tool board panels that can be used with Flextur accessories. Change over is easy and quick with a 2″ grid pattern of 16mm locator pin holes. Inexperienced Welders can easily make an accurate setup and become productive in minutes with this Welding Table. Onboard metal tool board panels keep tools organized and within easy reach. A complete line of Flextur accessories, ordered separately, are available to outfit your table. Base requires some assembly but all welding table tops ship assembled. American Made in Dalton, Ohio U.S.A.
- 1/2″ Nitride Top with 16mm Holes
- 2″ Grid Pattern
- 1/2″ top with 1/4″ x 2″ struts
- +/- .015″ Surface flatness over 4 sq. ft.
Full Specifications
| Part number | 71500191 |
|---|---|
| Length | 36 in |
| Width | 30 in |
| Height | 35 in |
| Weight | 305 lbs |
| Load capacity | 2,000 lbs |
| Material | Steel |
| Finish | Nitride + Black Oxide Treated |
| Quantity | 1 |
Compare Flextur Welding Tables
Compare Flextur welding table families across application, construction, capacity, configuration, and mobility to find the most appropriate product group.
| Compare by | Stationary Tables | Mobile Tables | Cobot Tables | Quick-Change Tables |
|---|---|---|---|---|
| Primary Use | General Manual or Cobot Welding | Mobile Welding or Changing Work Zones | Dedicated Cobot Automation | High-Mix, Low-Volume Cobot Welding |
| Size Options | 36″ × 30″Item 7890925036″ × 72″Item 7890926548″ × 48″ — 5-SidedItem 7890951048″ × 96″ — 5-SidedItem 78909530 | 48″ × 48″Item 7890951548″ × 96″Item 78909525 | 36″ × 36″Item 7150006972″ × 36″Item 71500068 | 36″ × 36″Item 7150006172″ × 36″Item 71500063 |
| Table Material | Nitride or Plain Steel | Nitride or Plain Steel | Nitride Steel | Steel |
| Mobility | No | Yes | No | No |
| Load Capacity | 1,000–6,000 lbs | 4,000 lbs | 2,000 lbs | 2,000 lbs |
| Adjustability / Leveling | Adjustable Height | Fixed Legs with Casters | Fixed Legs | Leveling Feet |
| Cobot Compatibility | Cobot Pedestal compatible | Cobot Pedestal compatible | Cobot Docking Station compatible | Cobot Docking Station compatible |
| Workflow / Automation | Basic Manual Workflow to Automation Ready | Flexible Workflow with Mobility | Cobot Optimized | High-Mix, Quick-Change Automation |
| Best For | Manual Weld Shops to Scalable Cobot Systems | Shops Needing Table Mobility | Cobot Prototyping & Production | Fast Setup Changes, Short-Run Cobot Welding |
| Explore Families | View Tables → | View Tables → | View Tables → | View Tables → |
