Flextur Welding Table and Accessories
36″ x 72″ Welding Table with 27 Piece Fixturing Kit
Flextur™ Welding Table 36"L x 72"W x 35"H, 2,000 lb. capacity. Includes 27 Piece Fixture Kit. Ideal for medium-sized jobs. Use with Flextur and Metal Pegboard Accessories.
Key specifications
USA Made Dalton, Ohio
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Full Specifications
| Part number | 71500004 |
|---|---|
| Length | 36 in |
| Width | 72 in |
| Height | 35 in |
| Weight | 615 lbs |
| Load capacity | 2,000 lbs |
Product Overview

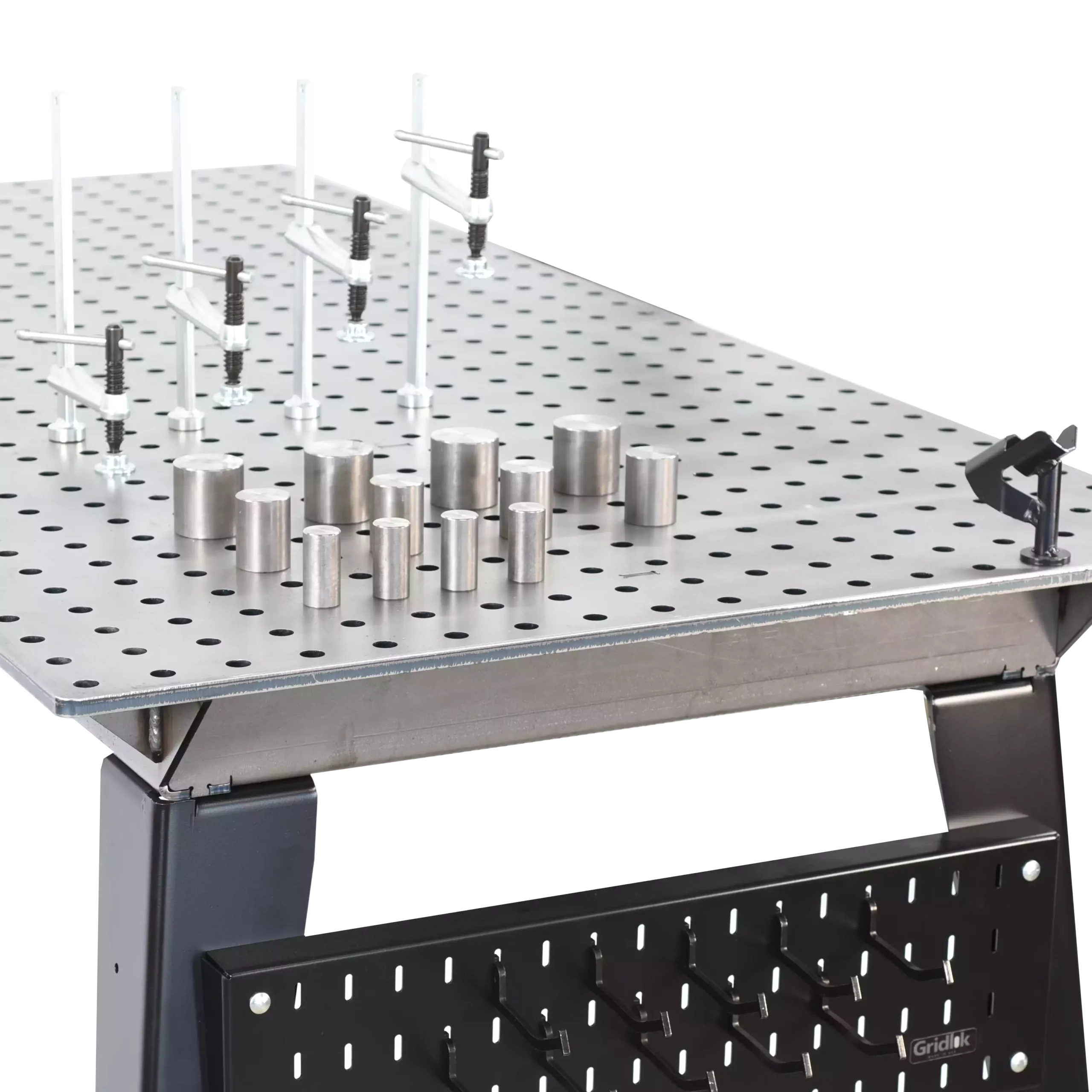

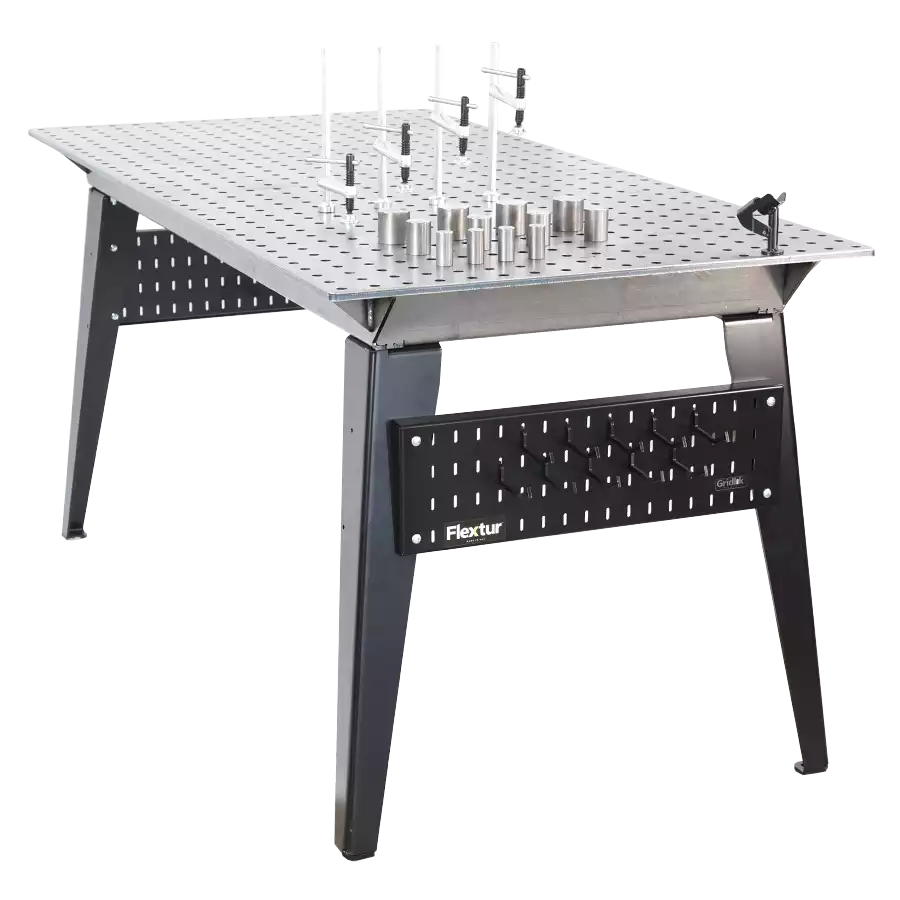

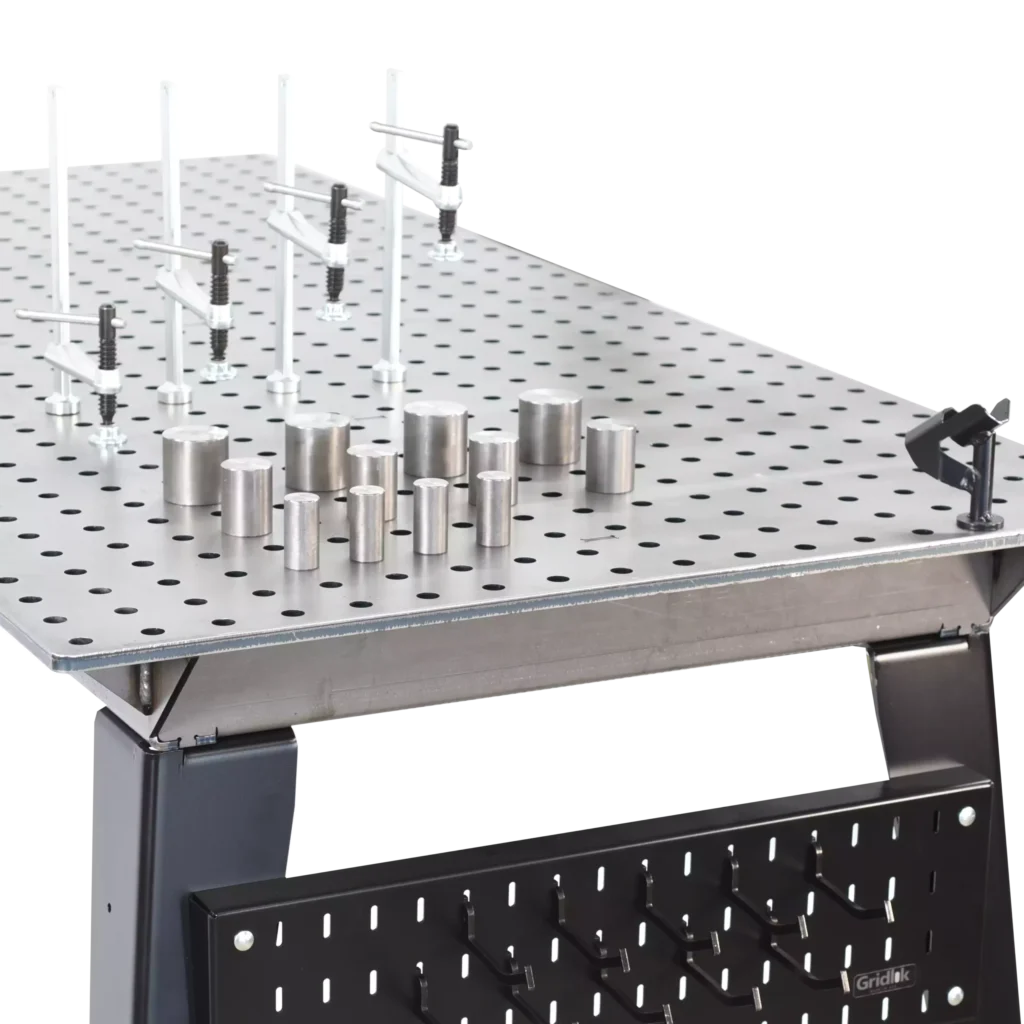

Give longer parts and more involved assemblies the room they require with the Flextur™ 36″ × 72″ Welding Table and 27-Piece Fixturing Kit. Measuring 36″L × 72″W × 35″H, this table provides substantially more working area than the compact 36″ × 30″ model while maintaining a practical 36″ depth.
Its 1/2″ steel top is supported by 1/4″ × 2″ struts and a heavy, matte-black powder-coated base rated for loads up to 2,000 lbs. The tabletop maintains a surface flatness of ±.015″ over four square feet, helping welders position components consistently across the larger work area.
The tabletop incorporates 16 mm locator-pin holes arranged on a 2″ grid. This pattern gives operators the flexibility to position clamps and stops throughout the work surface, reproduce established setups, and transition efficiently between jobs. Onboard 14-gauge Flextur metal Tool Board panels provide convenient storage for frequently used tools and materials, keeping the work area organized and essential equipment close at hand.
A 27-piece Fixturing Kit is included to outfit the table for production from the start. Compatible with Flextur Welding Tables and other tables using 16 mm holes, the kit supplies a practical combination of clamps, locator pins, tool hooks, and a weld-gun holder. It is recommended for Flextur’s 36″-series Welding Tables.
The tabletop arrives fully assembled, while the base requires some assembly. All components included in the kit may also be purchased separately, and additional Flextur accessories are available for expanding or customizing the workstation.
American Made in Dalton, Ohio, U.S.A.
Full Specifications
| Part number | 71500004 |
|---|---|
| Length | 36 in |
| Width | 72 in |
| Height | 35 in |
| Weight | 615 lbs |
| Load capacity | 2,000 lbs |
What’s Included
27 Piece Fixturing Kit Includes:
- 5/8″ Vertical Clamp (4pk)
- 4″ Tool Cradle Hook (10pk)
- Weld Gun Holder
- 1.0″ Locator Pin (4pk)
- 1.5″ Locator Pin (4pk)
- 2.0″ Locator Pin (4pk)
Compare Flextur Welding Tables
Compare Flextur welding table families across application, construction, capacity, configuration, and mobility to find the most appropriate product group.
| Compare by | Stationary Tables | Mobile Tables | Cobot Tables | Quick-Change Tables |
|---|---|---|---|---|
| Primary Use | General Manual or Cobot Welding | Mobile Welding or Changing Work Zones | Dedicated Cobot Automation | High-Mix, Low-Volume Cobot Welding |
| Size Options | 36″ × 30″Item 7890925036″ × 72″Item 7890926548″ × 48″ — 5-SidedItem 7890951048″ × 96″ — 5-SidedItem 78909530 | 48″ × 48″Item 7890951548″ × 96″Item 78909525 | 36″ × 36″Item 7150006972″ × 36″Item 71500068 | 36″ × 36″Item 7150006172″ × 36″Item 71500063 |
| Table Material | Nitride or Plain Steel | Nitride or Plain Steel | Nitride Steel | Steel |
| Mobility | No | Yes | No | No |
| Load Capacity | 1,000–6,000 lbs | 4,000 lbs | 2,000 lbs | 2,000 lbs |
| Adjustability / Leveling | Adjustable Height | Fixed Legs with Casters | Fixed Legs | Leveling Feet |
| Cobot Compatibility | Cobot Pedestal compatible | Cobot Pedestal compatible | Cobot Docking Station compatible | Cobot Docking Station compatible |
| Workflow / Automation | Basic Manual Workflow to Automation Ready | Flexible Workflow with Mobility | Cobot Optimized | High-Mix, Quick-Change Automation |
| Best For | Manual Weld Shops to Scalable Cobot Systems | Shops Needing Table Mobility | Cobot Prototyping & Production | Fast Setup Changes, Short-Run Cobot Welding |
| Explore Families | View Tables → | View Tables → | View Tables → | View Tables → |
