Flextur™ Nitride Welding Table and Accessories

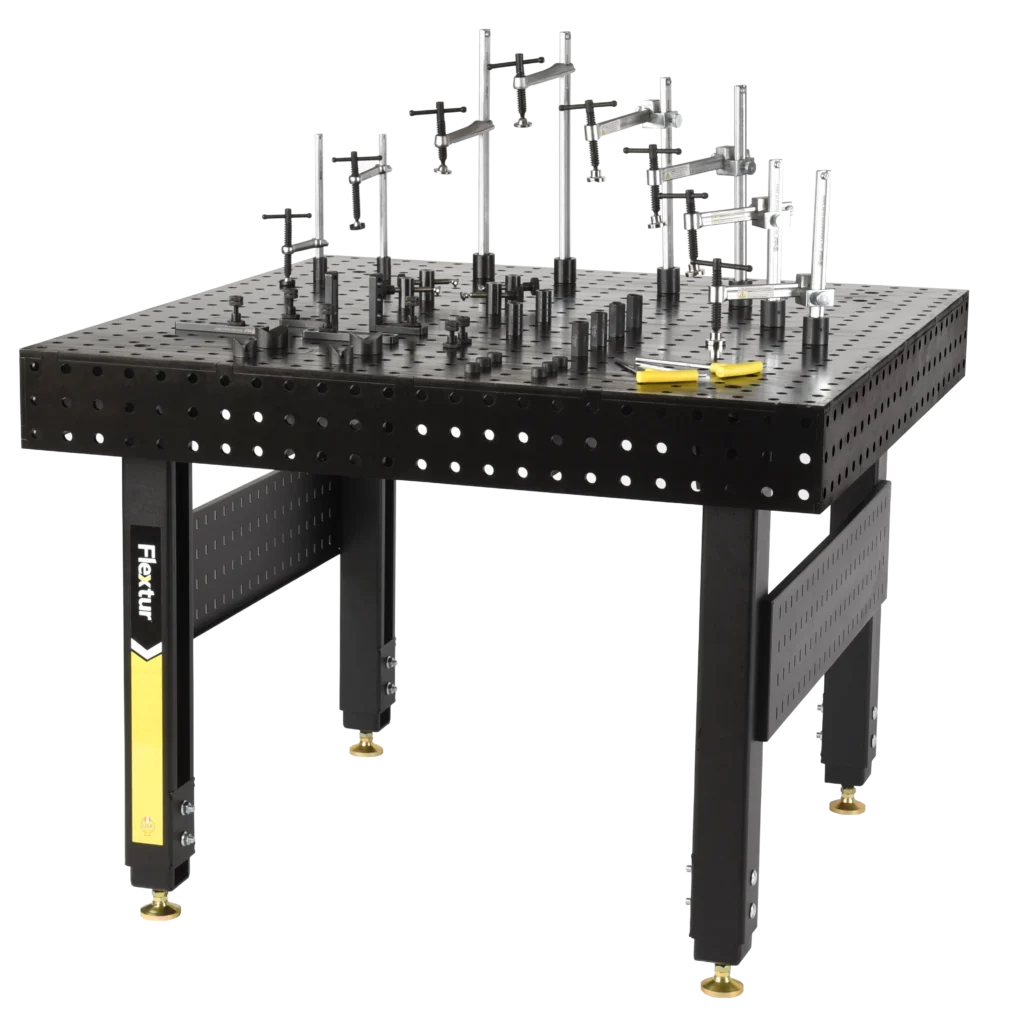

48″ x 48″ Stationary Nitride Welding Table with 40 Piece Fixturing Kit
Flextur™ Nitride Welding Table 48"L x 48"W x 35"H with casters, 6,000lb capacity. Includes 40 Piece Fixture Kit. Use with Flextur Accessories.
Key specifications
USA Made Dalton, Ohio
MSRP: $6,400.00
Shipping & Assembly
Base requires assembly. Tabletop ships assembled.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Full Specifications
| Part number | 71500201 |
|---|---|
| Length | 48 in |
| Width | 48 in |
| Height | 35 in |
| Weight | 855 lbs |
| Load capacity | 6,000 lbs |
| Material | Steel |
| Finish | Nitride + Black Oxide Treated |
| Quantity | 1 |
Product Overview
This Package includes a Flextur™ Nitride Welding Table 48″L x 48″W x 35″H, with 1/2″ black top supported by 3/8″ x 5″ struts every 16″, Flextur Tool Board panels, a full bottom shelf, casters, and a 6,000 lbs. capacity. Surface flatness is +/- .015″ over 4 square feet. The dual-layer protection of nitride & black oxide is a powerful combination. Both harden and prevent corrosion, extending the life of your table – while maintaining flatness and structural integrity. Changeover is easy and quick with movable 16mm locator pin in a 2″ grid pattern. Skirting along all sides has the same hole configuration and gives the flexibility to extend your table in any direction, up to 24″, with a Flextur Fixture Block for larger Weldments. Well suited for larger jobs, Flextur Welding Tables will improve accuracy and greatly reduce set up time for complicated weldments. Inexperienced Welders can easily make an accurate setup and become productive in minutes with this Welding Table. Onboard steel Flextur tool board panels keep tools organized and within easy reach. Base requires assembly, but all welding table tops ship assembled.
In addition, you get a Flextur™ 40-piece Fixturing Kit for Welding. Use with Flextur Welding Tables and tables with 16mm holes. This extensive 40 Piece Fixturing Kit has all of the clamps and accessories you’ll need to be productive with your table. This extremely capable kit will have you covered no matter the task at hand. Recommended for Flextur 36″ x 72″, 48″ x 48″ and 48″ x 96″ Welding Tables.
Full Specifications
| Part number | 71500201 |
|---|---|
| Length | 48 in |
| Width | 48 in |
| Height | 35 in |
| Weight | 855 lbs |
| Load capacity | 6,000 lbs |
| Material | Steel |
| Finish | Nitride + Black Oxide Treated |
| Quantity | 1 |
What’s Included
40 Piece Fixturing Kit Includes:
- Clamp 5/8″ x 7 7/8″ vertical (2)
- Clamp 5/8″ x 11 1/4″ vertical (2)
- Clamp 5/8″ x 7 7/8″ vertical, adjustable throat (2)
- Clamp 5/8″ x 11 1/4″ vertical, adjustable throat (2)
- Clamp 5/8″ Horizontal (4)
- Ball Lock Bolt (6)
- Locator Pin 7/8″ (6)
- Locator Pin Flat, 1.125″ (4)
- Locator Pin 1.25″ (2)
- Straight Edge Stop 5 7/8″ (2)
- Angle Bracket 90° (2)
- V Block 120° (2)
- V Block 90° (2)
- Hex Wrench (2)
Compare Flextur Welding Tables
Compare Flextur welding table families across application, construction, capacity, configuration, and mobility to find the most appropriate product group.
| Compare by | Stationary Tables | Mobile Tables | Cobot Tables | Quick-Change Tables |
|---|---|---|---|---|
| Primary Use | General Manual or Cobot Welding | Mobile Welding or Changing Work Zones | Dedicated Cobot Automation | High-Mix, Low-Volume Cobot Welding |
| Size Options | 36″ × 30″Item 7890925036″ × 72″Item 7890926548″ × 48″ — 5-SidedItem 7890951048″ × 96″ — 5-SidedItem 78909530 | 48″ × 48″Item 7890951548″ × 96″Item 78909525 | 36″ × 36″Item 7150006972″ × 36″Item 71500068 | 36″ × 36″Item 7150006172″ × 36″Item 71500063 |
| Table Material | Nitride or Plain Steel | Nitride or Plain Steel | Nitride Steel | Steel |
| Mobility | No | Yes | No | No |
| Load Capacity | 1,000–6,000 lbs | 4,000 lbs | 2,000 lbs | 2,000 lbs |
| Adjustability / Leveling | Adjustable Height | Fixed Legs with Casters | Fixed Legs | Leveling Feet |
| Cobot Compatibility | Cobot Pedestal compatible | Cobot Pedestal compatible | Cobot Docking Station compatible | Cobot Docking Station compatible |
| Workflow / Automation | Basic Manual Workflow to Automation Ready | Flexible Workflow with Mobility | Cobot Optimized | High-Mix, Quick-Change Automation |
| Best For | Manual Weld Shops to Scalable Cobot Systems | Shops Needing Table Mobility | Cobot Prototyping & Production | Fast Setup Changes, Short-Run Cobot Welding |
| Explore Families | View Tables → | View Tables → | View Tables → | View Tables → |
Frequently Asked Questions
Quick answers about this welding table, its included kit, specifications, fulfillment, and purchasing options.
What is included with this welding table?
This product includes the welding table and a 40-piece fixturing kit. See the Overview tab for the complete component list.
Does the welding table require assembly?
Base requires assembly. The tabletop ships assembled.
What fixturing pattern does this table use?
This table uses 16 mm holes on a 2-inch grid. The skirting along all sides uses the same hole configuration.
What is the load capacity of this welding table?
The listed load capacity is 6,000 lbs.
Can I purchase this table directly or through a distributor?
You can purchase directly using Add to Cart, or use Find a Distributor to locate a distributor. Distributor representatives can use Request a Distributor Quote.
