5 Sided Nitride Welding Table Top

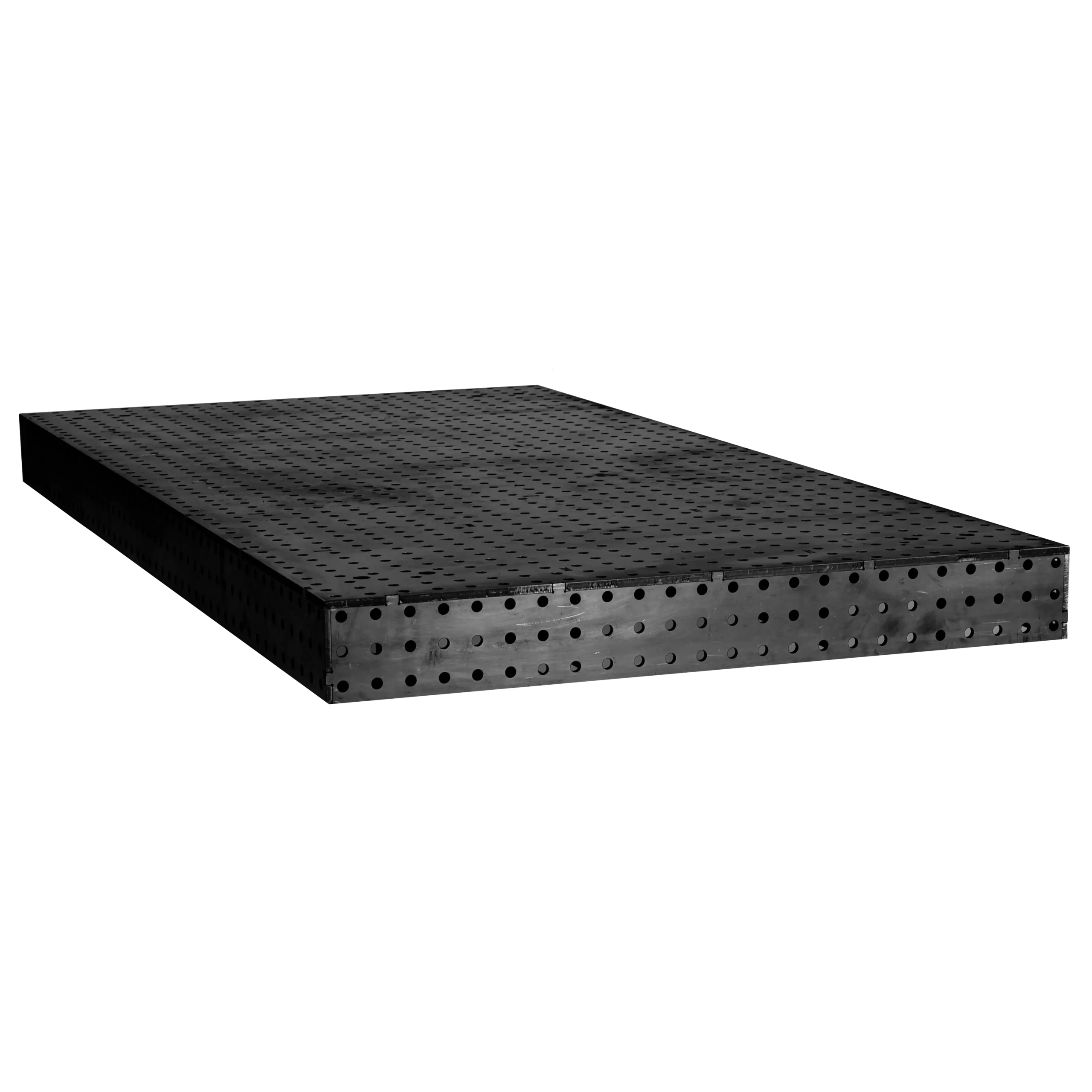

48″ x 96″ x 6″ Nitride Welding Table (Top Only)
Flextur™ Nitride Welding Table 48"L x 96"W x 6"H Top Only. Use with Flextur Welding Table Accessories.
Key specifications
USA Made Dalton, Ohio
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Full Specifications
| Part number | 71500200 |
|---|---|
| Length | 48 in |
| Width | 96 in |
| Height | 6 in |
| Weight | 978 lbs |
| Load capacity | 6,000 lbs |
| Material | Steel |
| Finish | Nitride + Black Oxide Treated |
| Quantity | 1 |
Product Overview
Flextur™ Nitride Welding Table Top Only – 48″L x 96″W x 35″H, with 1/2″ black top supported by 3/8″ x 5″ struts every 16″. Surface flatness is +/- .015″ over 4 square feet. The dual-layer protection of nitride & black oxide is a powerful combination. Both harden and prevent corrosion, extending the life of your table – while maintaining flatness and structural integrity. Change over is easy and quick with movable 16mm locator pin in a 2″ grid pattern. Skirting along all sides has the same hole configuration and gives the flexibility to extend your table in any direction, up to 24″, with a Flextur Fixture Block for larger Weldments. Well suited for larger jobs Flextur Welding Tables will improve accuracy and greatly reduce set up time for complicated Weldments. Inexperienced Welders can easily make an accurate setup and become productive in minutes with this Welding Table. All welding table tops ship assembled. A complete line of Flextur Accessories, ordered separately, are available to outfit your table. American Made in Dalton, Ohio U.S.A.
- 1/2″ Nitride Top with 16mm Holes
- 2″ Grid Pattern
- 3/8″ x 5″ Support Struts Every 16″
- +/- .015″ Surface Flatness over 4 sq. ft.
Full Specifications
| Part number | 71500200 |
|---|---|
| Length | 48 in |
| Width | 96 in |
| Height | 6 in |
| Weight | 978 lbs |
| Load capacity | 6,000 lbs |
| Material | Steel |
| Finish | Nitride + Black Oxide Treated |
| Quantity | 1 |
Compare Flextur Welding Tables
Compare Flextur welding table families across application, construction, capacity, configuration, and mobility to find the most appropriate product group.
| Compare by | Stationary Tables | Mobile Tables | Cobot Tables | Quick-Change Tables |
|---|---|---|---|---|
| Primary Use | General Manual or Cobot Welding | Mobile Welding or Changing Work Zones | Dedicated Cobot Automation | High-Mix, Low-Volume Cobot Welding |
| Size Options | 36″ × 30″Item 7890925036″ × 72″Item 7890926548″ × 48″ — 5-SidedItem 7890951048″ × 96″ — 5-SidedItem 78909530 | 48″ × 48″Item 7890951548″ × 96″Item 78909525 | 36″ × 36″Item 7150006972″ × 36″Item 71500068 | 36″ × 36″Item 7150006172″ × 36″Item 71500063 |
| Table Material | Nitride or Plain Steel | Nitride or Plain Steel | Nitride Steel | Steel |
| Mobility | No | Yes | No | No |
| Load Capacity | 1,000–6,000 lbs | 4,000 lbs | 2,000 lbs | 2,000 lbs |
| Adjustability / Leveling | Adjustable Height | Fixed Legs with Casters | Fixed Legs | Leveling Feet |
| Cobot Compatibility | Cobot Pedestal compatible | Cobot Pedestal compatible | Cobot Docking Station compatible | Cobot Docking Station compatible |
| Workflow / Automation | Basic Manual Workflow to Automation Ready | Flexible Workflow with Mobility | Cobot Optimized | High-Mix, Quick-Change Automation |
| Best For | Manual Weld Shops to Scalable Cobot Systems | Shops Needing Table Mobility | Cobot Prototyping & Production | Fast Setup Changes, Short-Run Cobot Welding |
| Explore Families | View Tables → | View Tables → | View Tables → | View Tables → |
