Heavy-Duty, High-Capacity Welding Solution for Mobility & Precision

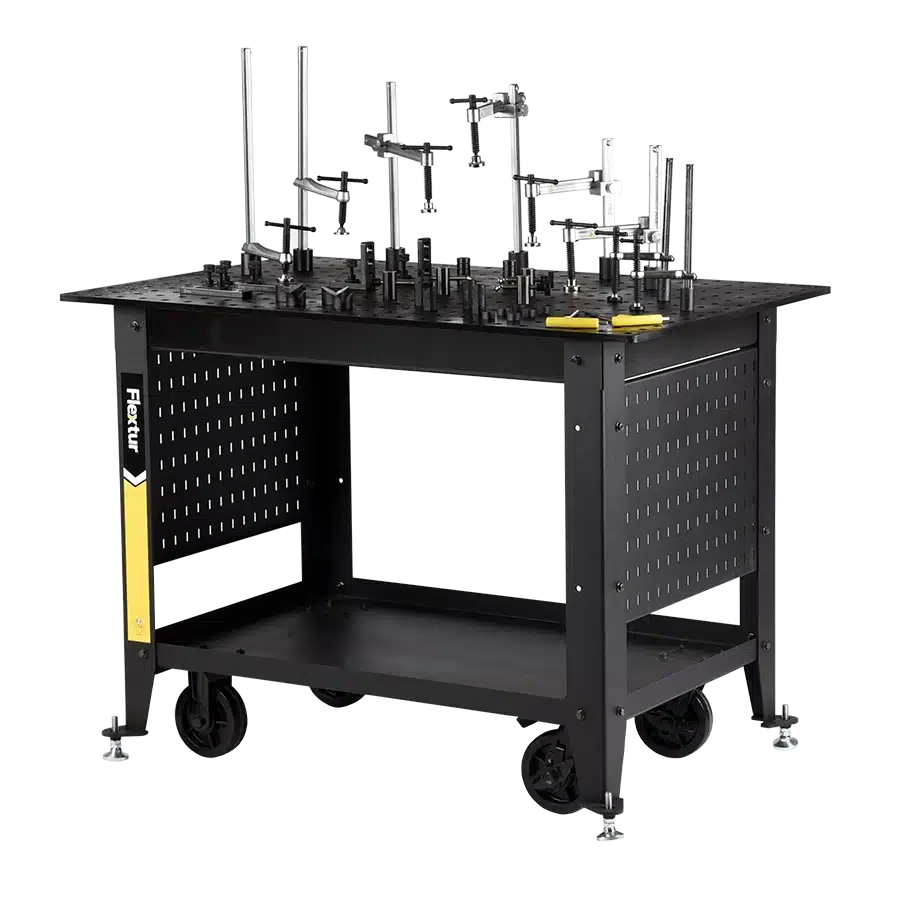

Mobile Nitride Welding Table Cart with 40 Piece Fixture Kit
Flextur™ Mobile Nitride Welding Table Cart is capable of supporting and transporting 1,750lbs and is ideal for cobots or any on-the-go welding work cell.
Key specifications
USA Made Dalton, Ohio
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Full Specifications
| Part number | 71500205 |
|---|---|
| Length | 48 in |
| Width | 30 in |
| Height | 35 in |
| Weight | 414 lbs |
| Load capacity | 1,750 lbs |
| Material | Steel |
| Finish | Nitride + Black Oxide Treated |
| Quantity | 1 |
Product Overview
Flextur™ Mobile Nitride Welding Table Cart with 40 Piece Fixture Kit is capable of supporting and transporting 1,750lbs. This Mobile Welding Table Cart is ideal for cobots or any on-the-go welding work cell. The dual-layer protection of nitride & black oxide is a powerful combination. Both harden and prevent corrosion, extending the life of your table – while maintaining flatness and structural integrity. 14-gauge Flextur Tool Board, capable of supporting 50lbs. on a single hook, provides superior flexibility and strength when organizing tools and materials within easy reach. A full bottom shelf provides ample space for a welder or cobot controller. This robust and highly mobile solution is Flextur’s agile response to an industry need. American Made in Dalton, Ohio U.S.A. In addition, you get a Flextur™ 40-piece Fixturing Kit for Welding. Use with Flextur Welding Tables and tables with 16mm holes. This extensive 40 Piece Fixturing Kit has all of the clamps and accessories you’ll need to be productive with your table. This extremely capable kit will have you covered no matter the task at hand. Recommended for Flextur 36″ x 72″, 48″ x 48″ and 48″ x 96″ Welding Tables.
- Easily accessible leveling feet for added stationary stability
- 1/2″ Nitride Top with 16mm Holes
- 2″ Grid Pattern
- +/- .015″ Surface flatness over 4 sq. ft.
- Flextur Tool Board Panels
- Casters
- Full Bottom Shelf
Full Specifications
| Part number | 71500205 |
|---|---|
| Length | 48 in |
| Width | 30 in |
| Height | 35 in |
| Weight | 414 lbs |
| Load capacity | 1,750 lbs |
| Material | Steel |
| Finish | Nitride + Black Oxide Treated |
| Quantity | 1 |
What’s Included
40 Piece Fixturing Kit Includes:
- Clamp 5/8″ x 7 7/8″ vertical (2)
- Clamp 5/8″ x 11 1/4″ vertical (2)
- Clamp 5/8″ x 7 7/8″ vertical, adjustable throat (2)
- Clamp 5/8″ x 11 1/4″ vertical, adjustable throat (2)
- Clamp 5/8″ Horizontal (4)
- Ball Lock Bolt (6)
- Locator Pin 7/8″ (6)
- Locator Pin Flat, 1.125″ (4)
- Locator Pin 1.125″ (2)
- Straight Edge Stop 5 7/8″ (2)
- Angle Bracket 90° (2)
- V Block 120° (2)
- V Block 90° (2)
- Hex Wrench (2)
Compare Flextur Welding Tables
Compare Flextur welding table families across application, construction, capacity, configuration, and mobility to find the most appropriate product group.
| Compare by | Stationary Tables | Mobile Tables | Cobot Tables | Quick-Change Tables |
|---|---|---|---|---|
| Primary Use | General Manual or Cobot Welding | Mobile Welding or Changing Work Zones | Dedicated Cobot Automation | High-Mix, Low-Volume Cobot Welding |
| Size Options | 36″ × 30″Item 7890925036″ × 72″Item 7890926548″ × 48″ — 5-SidedItem 7890951048″ × 96″ — 5-SidedItem 78909530 | 48″ × 48″Item 7890951548″ × 96″Item 78909525 | 36″ × 36″Item 7150006972″ × 36″Item 71500068 | 36″ × 36″Item 7150006172″ × 36″Item 71500063 |
| Table Material | Nitride or Plain Steel | Nitride or Plain Steel | Nitride Steel | Steel |
| Mobility | No | Yes | No | No |
| Load Capacity | 1,000–6,000 lbs | 4,000 lbs | 2,000 lbs | 2,000 lbs |
| Adjustability / Leveling | Adjustable Height | Fixed Legs with Casters | Fixed Legs | Leveling Feet |
| Cobot Compatibility | Cobot Pedestal compatible | Cobot Pedestal compatible | Cobot Docking Station compatible | Cobot Docking Station compatible |
| Workflow / Automation | Basic Manual Workflow to Automation Ready | Flexible Workflow with Mobility | Cobot Optimized | High-Mix, Quick-Change Automation |
| Best For | Manual Weld Shops to Scalable Cobot Systems | Shops Needing Table Mobility | Cobot Prototyping & Production | Fast Setup Changes, Short-Run Cobot Welding |
| Explore Families | View Tables → | View Tables → | View Tables → | View Tables → |
